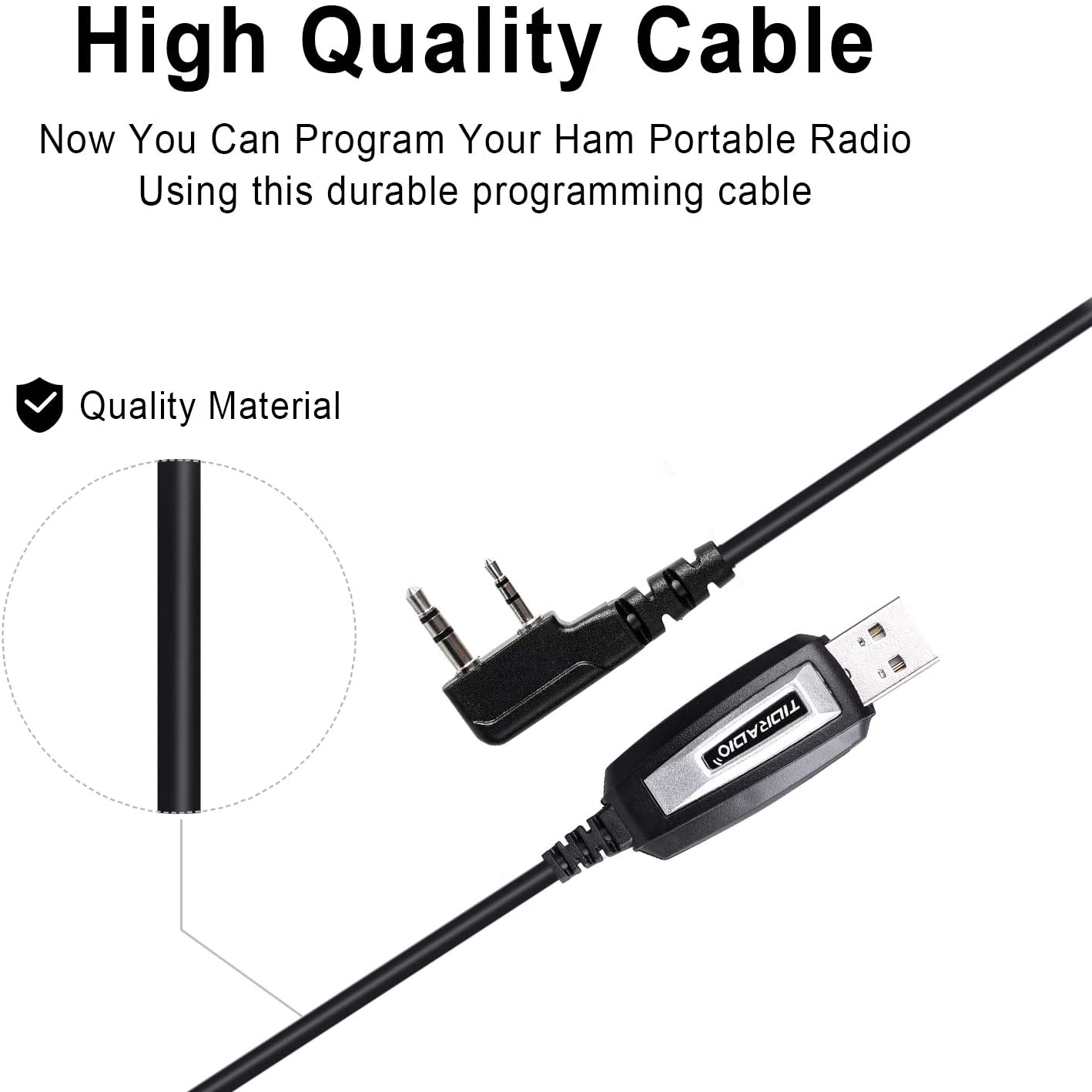

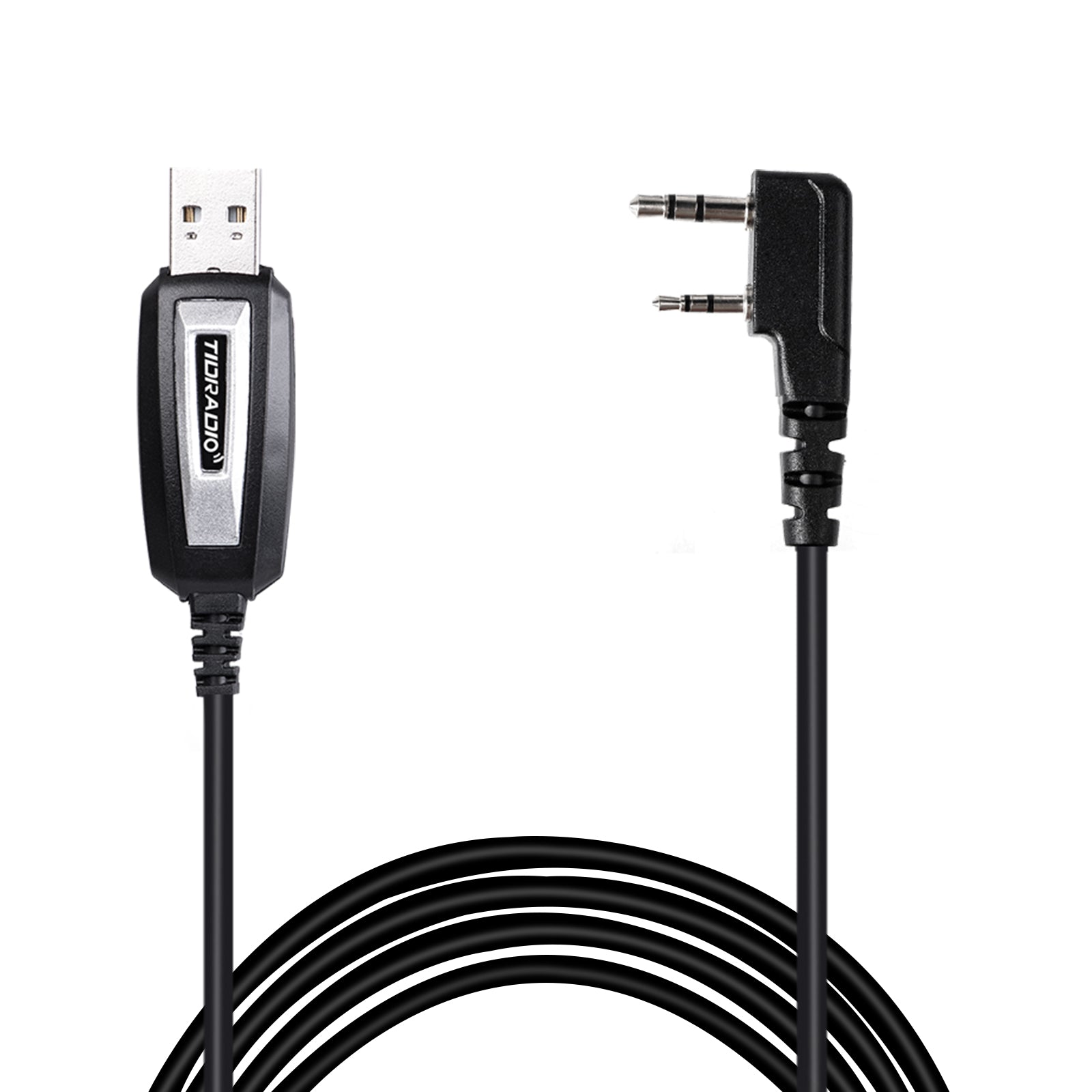

TD-CH340 Kenwood 2-pin Walkie-Talkie Driver USB Programming Cable

TD-CH340 Kenwood 2-pin Walkie-Talkie Driver USB Programming Cable

Regular price $2.99 USD
Regular price $19.99 USD Sale price $2.99 USD
Sold out
Taxes included. Shipping calculated at checkout.
Style

122 in stock

  • Authentic & Brand New
  • Free Shipping over $70
  • 360-Day Warranty
View full details

About This Item:

  1. All of our items are Brand New.

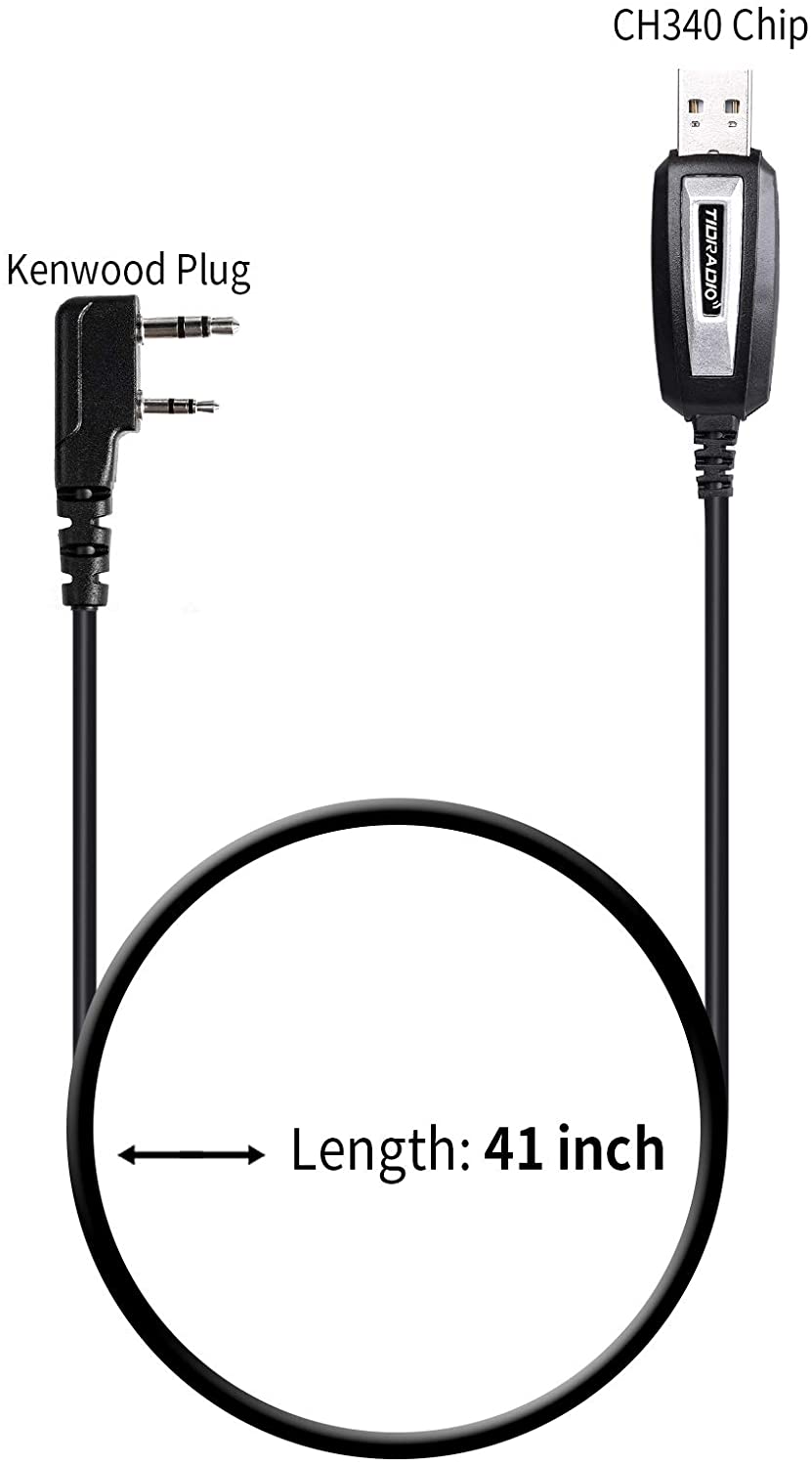

  2. Two-pin standard diameter: Ear 3.5mm stereo (top pin). Mic 2.5mm stereo (bottom pin).
  3. Space of two-pin: 8mm/11mm.
  4. Length: 41 inches
  • Compatible Model:(Almost All The brand two-way radios of China.)
  • For TIDRADIO TD-H9, TD,H3 Plus, TD-H8,TD-H6,TD-H5,TD-H3,TD-UV5R,TD-F6,TD-UV82,TD-F9GP,TD-777,TD-777s,TD-777Pro,TD-GM5R ,TD-M2,TD-M11
  • For TID TD-M8,TD-M8s,TD-V2
  • For Baofeng UV-5R Series (UV-5R/UV-5RTP/UV-5R PLUS/UV-5RX3/UV-5EX/UV-5A/5RX/M-5R/5RM/UV-5RPRO); UV-82 Series; UV-S9 Plus;GM-15Pro; GT-3 Series (GT-3/GT3TP);UV-9R Series, UV-17R Series,UV-21R,GT-1; BF-888S/BF-88A; BF-F8HP;BF-F8TD;BF-F8GP;BF-H5,BF-H6,BF-H7,AR-152,BF-T20,UVB5, UVB6, UV-8, UV8D,etc.
  • For Quansheng: UV-K5, UV-K6
  • For Talkpod: A36PLUS
  • For Kenwood KPG KPG27D, KPG29D,KPG48D, KPG49, KPG55D, KPG56D, KPG62D, KPG66D, KPG69D, KPG70D,KPG74D, KPG75D, KPG77D, KPG82D, KPG87D
  • For Kenwood TH TH-D7, TH-D7A, TH-D7AG, TH-D7E, TH-F6, TH-F6A, TH-F7, TH-F7E, TH-G71, TH-G71A, TH-G71E, TH-K2, TH-K2A, TH-K2E, TH-K2ET, TH-21, TH-21AT, TH-21BT, TH-22, TH-22A, TH-22AT, TH-22E, TH-25, TH-26, TH-27, TH-28, TH31AT, TH31BT, TH41AT, TH41BT, TH-42, TH-42A, TH-42AT, TH-42E, TH-45, TH-46, TH-47, TH-48, TH-55, TH-75, TH-77, TH-G71, TH-205, TH-215, TH-225, TH-235, TH-235A, TH-235E, TH-315, TH-415
  • For Retevis H777, RT1, RT3,RT3S,RT5, RT5R, RT5RV,RT7, RT8, RT15,RT21, RT22,RT24, RT27, RT80,RT81 etc.
  • For Radioddity R2, GA-2S, GA-5S, GA-510 For WOUXUN KG-UVD1/UVDIP KG-669/659/679/689/639/699/801
  • For TYT, HYT, QUANSHENG, WOUXUN, PUXING, etc.




In-depth Programming Guide—New Users: Easy to Program

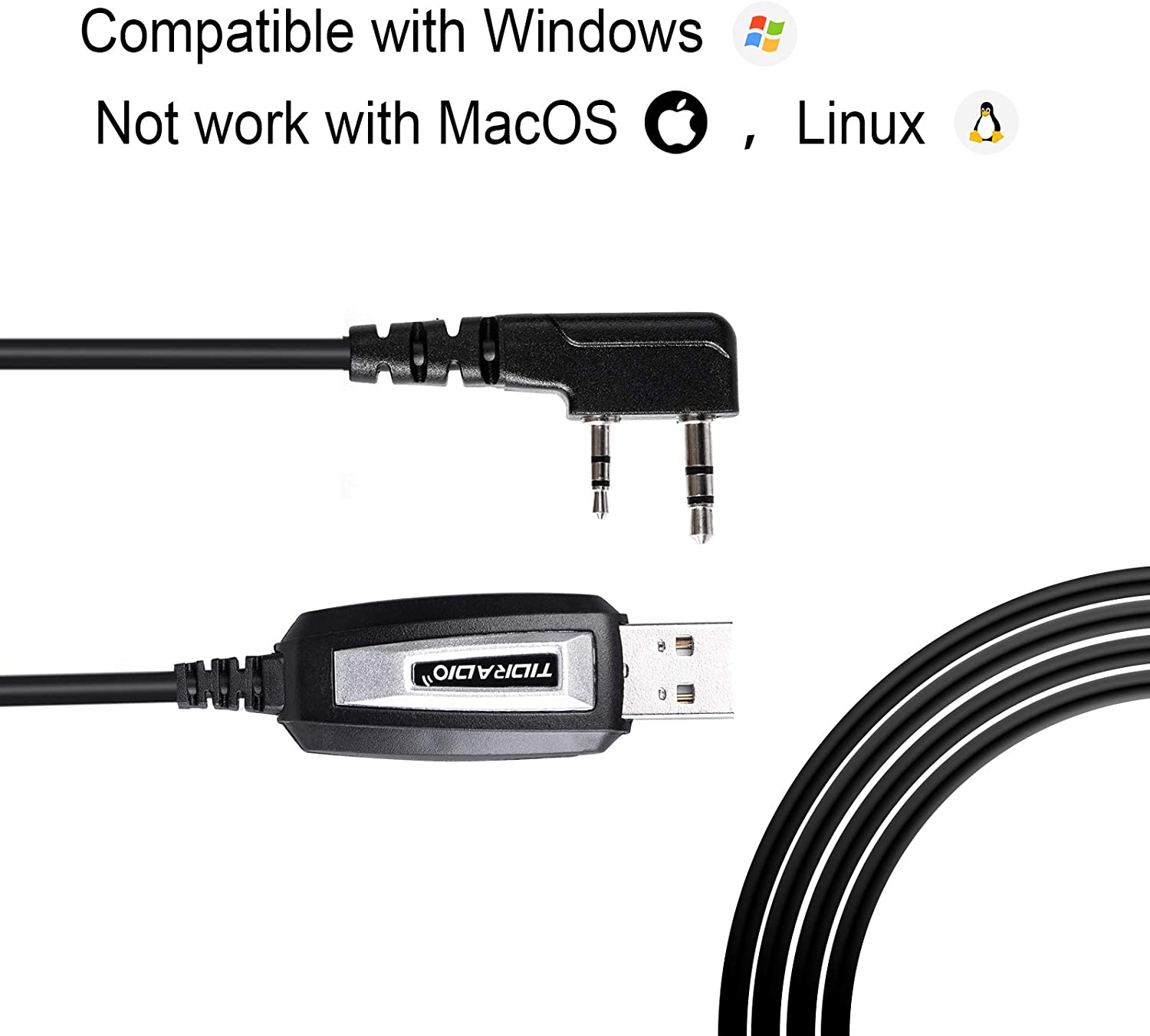

  • CH340 USB programming cables are only suitable for Windows systems, and drivers should be installed before programming
  1. Find your Windows system and download the driver.
  2. Click install and wait for the installation.
  3. Open “Device Manager”check the port (COM & LPT), and select the same port (COM & LPT) in the programming software

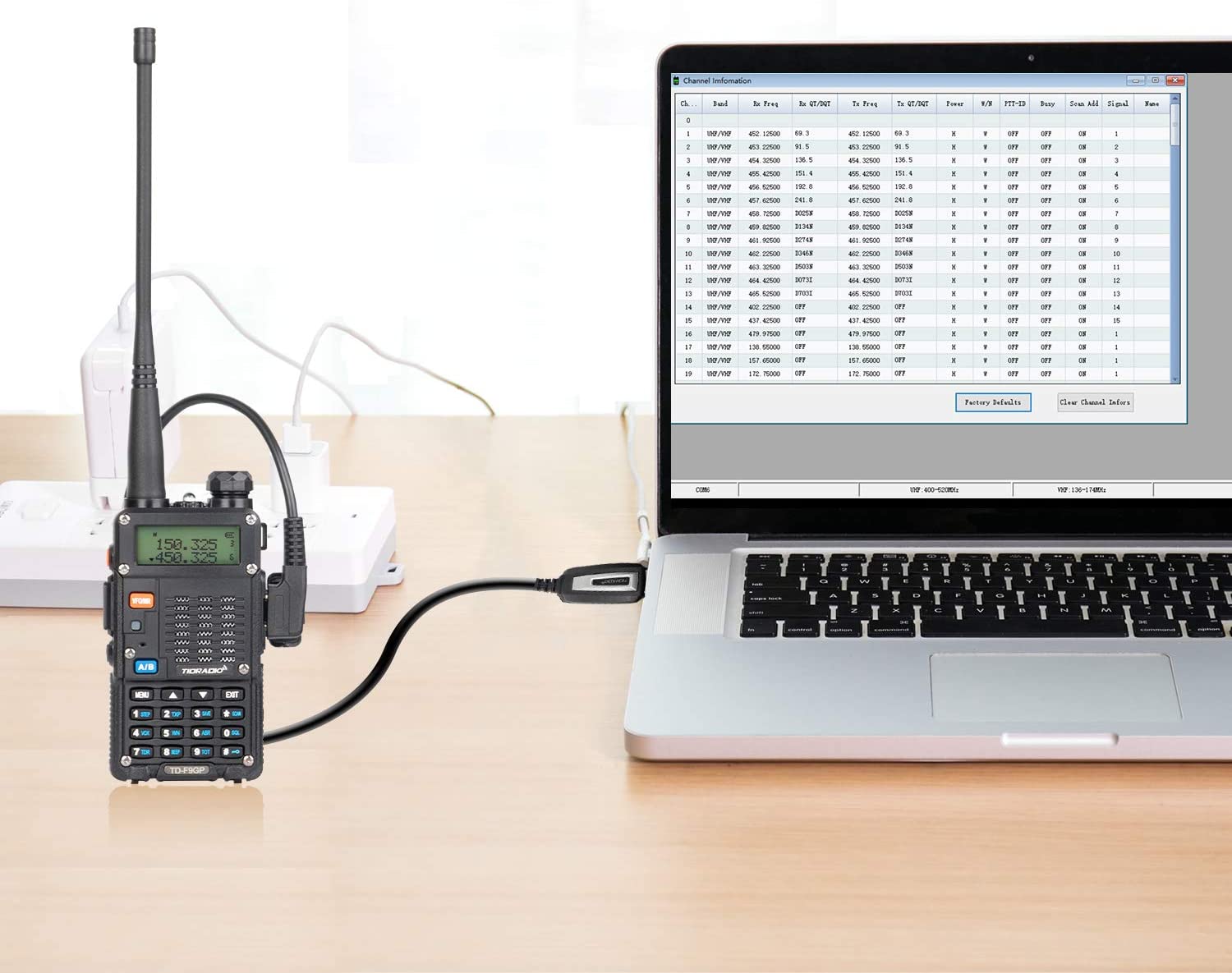

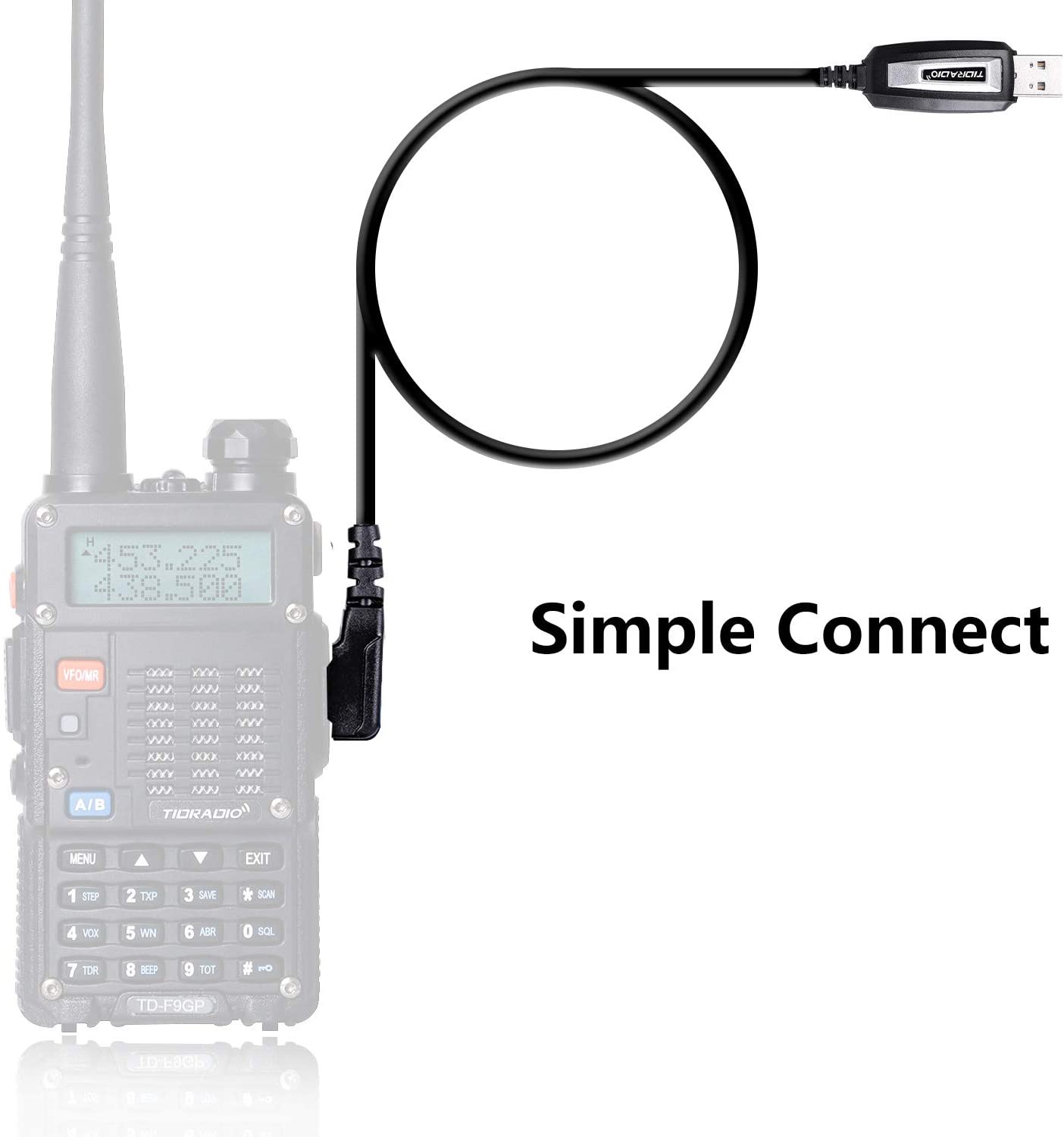

  4. Connect the USB programming cable to the computer and the other end of the cable to your radio, then turn on the radio. Make sure it has enough power during programming.
  5. Click the "Program-Read" button
  6. The parameters of the Radio can be modified or adjusted as needed(Channel, Frequency, CTCSS/DCS, etc.)
  7. Then click "Program-write" to write the data.
