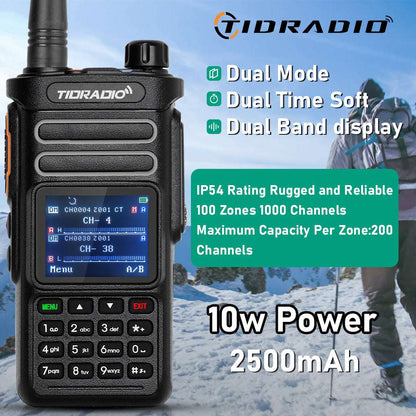

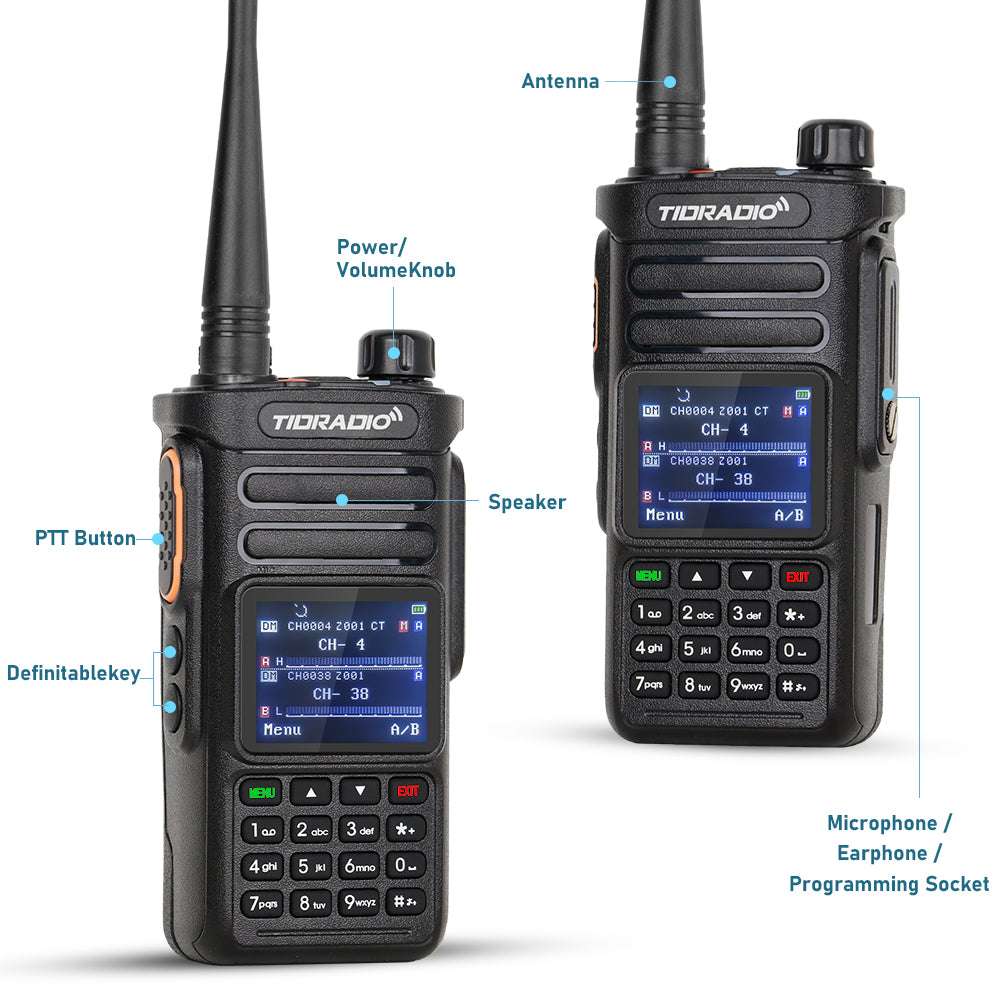

DP738 10W Analog / DMR Radio
DP738 10W Analog / DMR Radio
Low stock: 48 left
Couldn't load pickup availability
What can I get when I buy from the official website?
- Latest Model
- 1 Year Warranty
- Lifetime Customer Support
Product Description

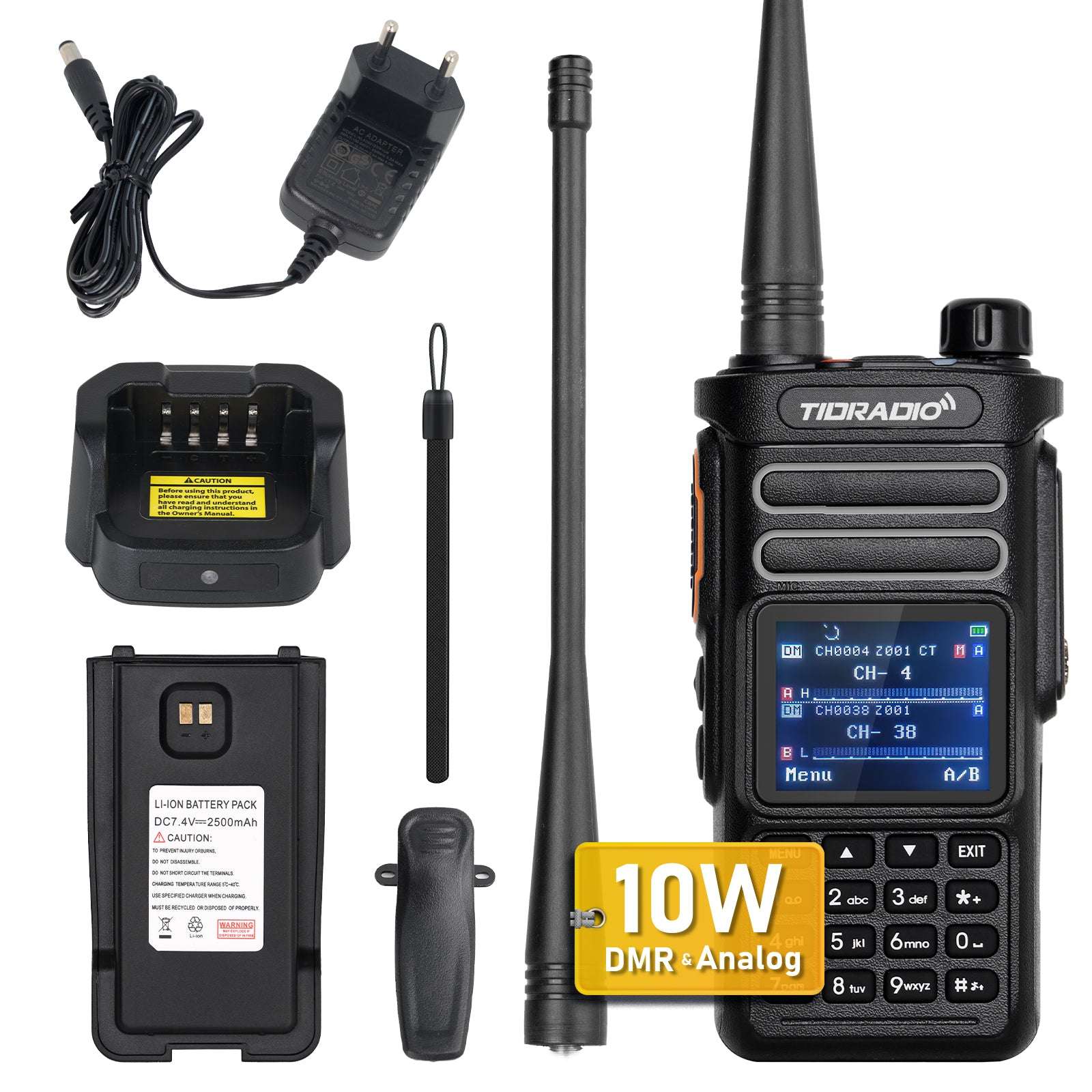

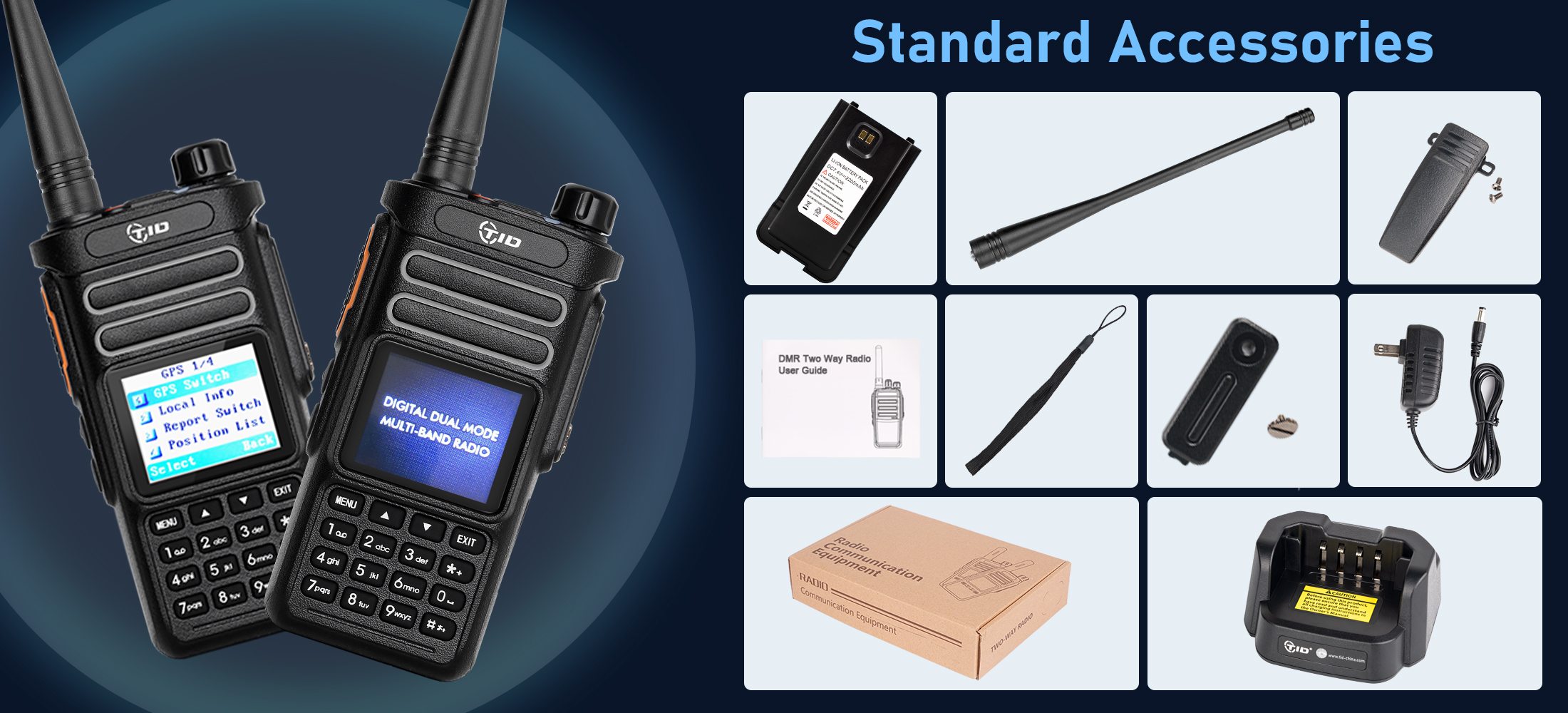

What's in the box？

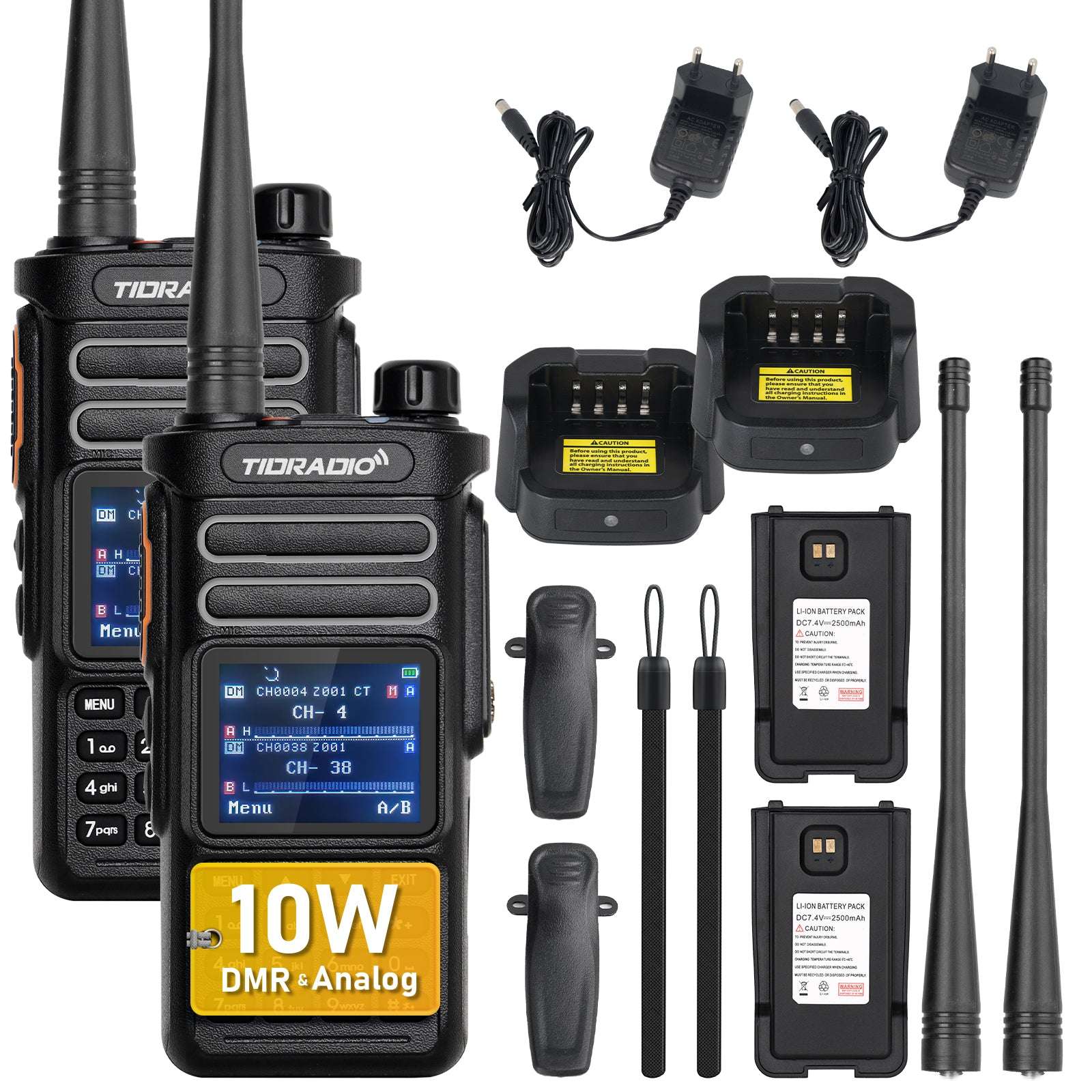

1P:DP738 Radio+2500mAh Battery+Antenna+Charger+Belt Clip+Hand Strap+User's Manual
2p: 2*DP738 Radios+2*2500mAh Batteries+2*Antennas+2*Chargers+2*Belt Clips+2*Hand Straps+2*User's Manuals
|
Specification
|
|
|

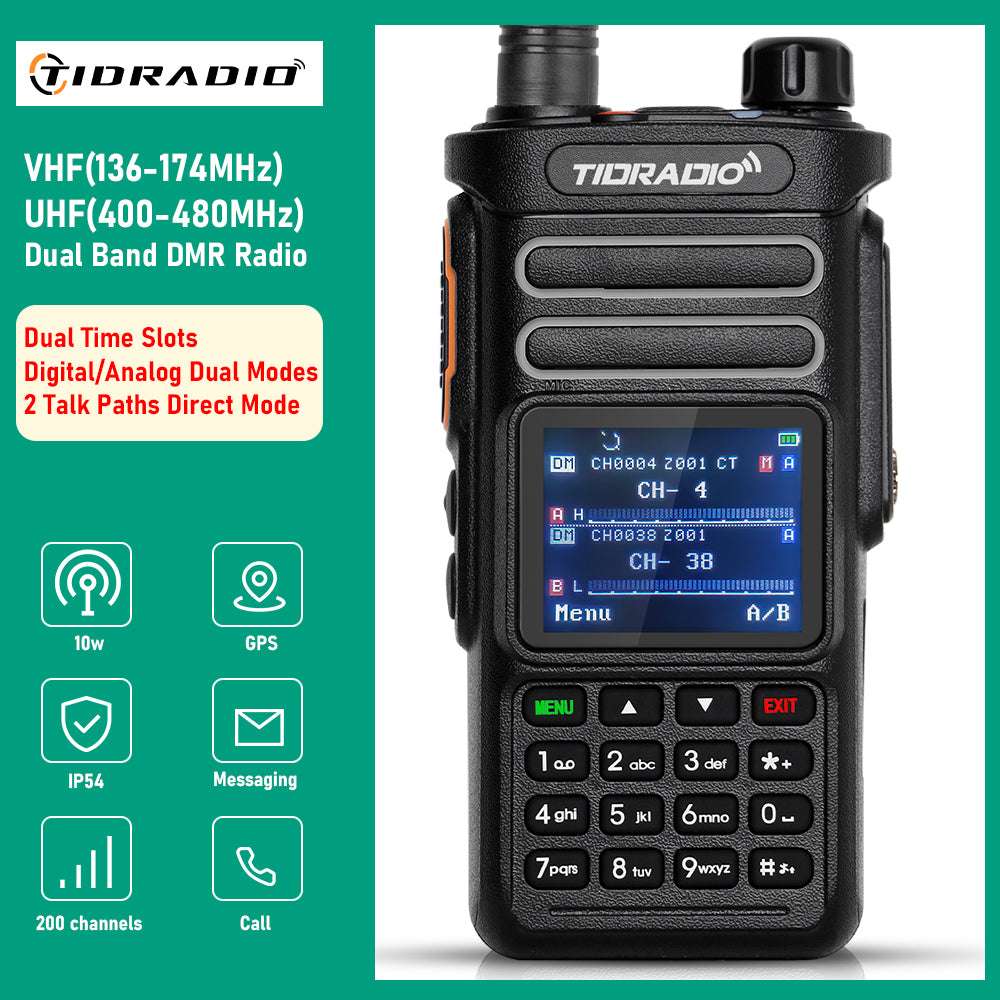

Frequency Range
|
Dual Band
VHF:134-176MHz |
|
|
UHF:400-480MHz
|
|

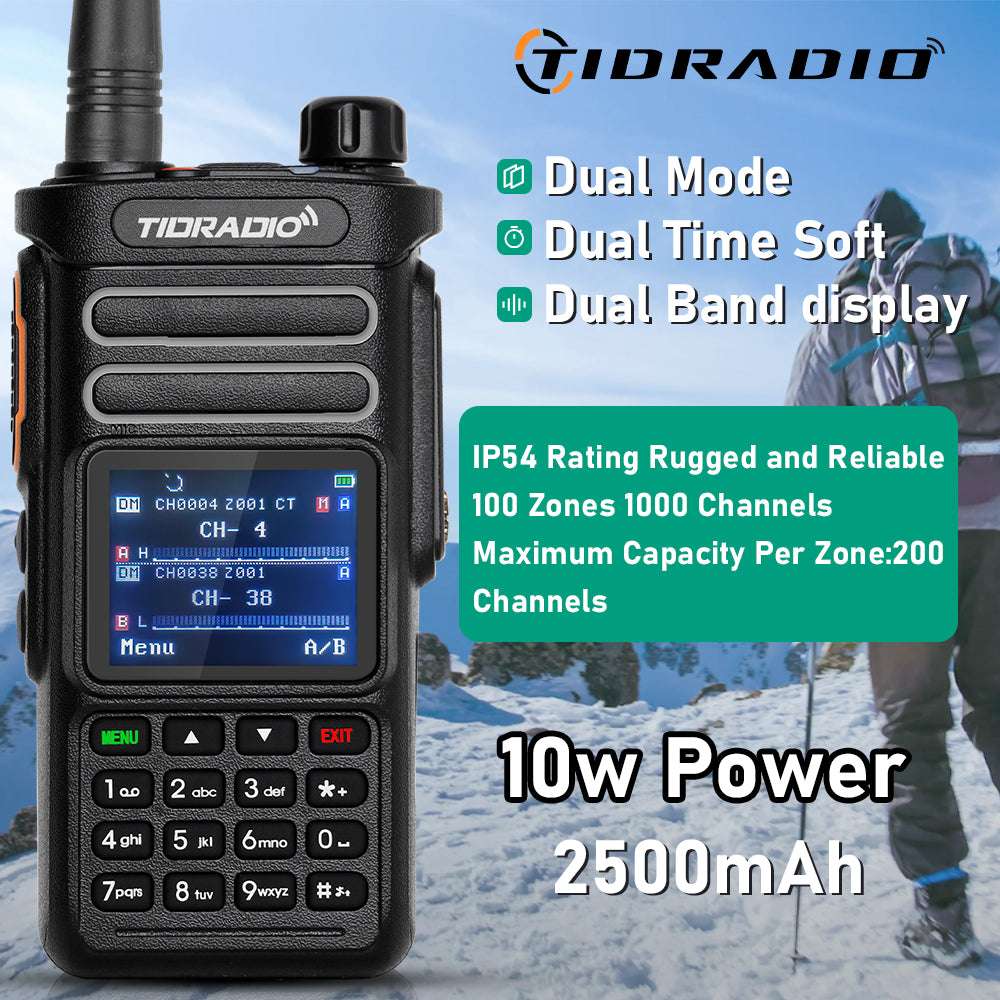

Channel Capacity
|
1000
|
|
Channel Spacing
|
Analog:25.0/12.5KHz Digital:12.5KHz
|
|
Operation Voltage
|
DC7.4V
|
|
Battery Capacity
|
1500mAh/3000mAh(Li-ion) option
|
|
Battery Life(5-5-90 Duty Cycle)
|
About 15Hours
|
|
Frequenty Stability
|
± 2.5ppm
|
|
Operating Temperature
|
-20~+60°C
|
|
Antenna Lmpedance
|
50Ω
|
|

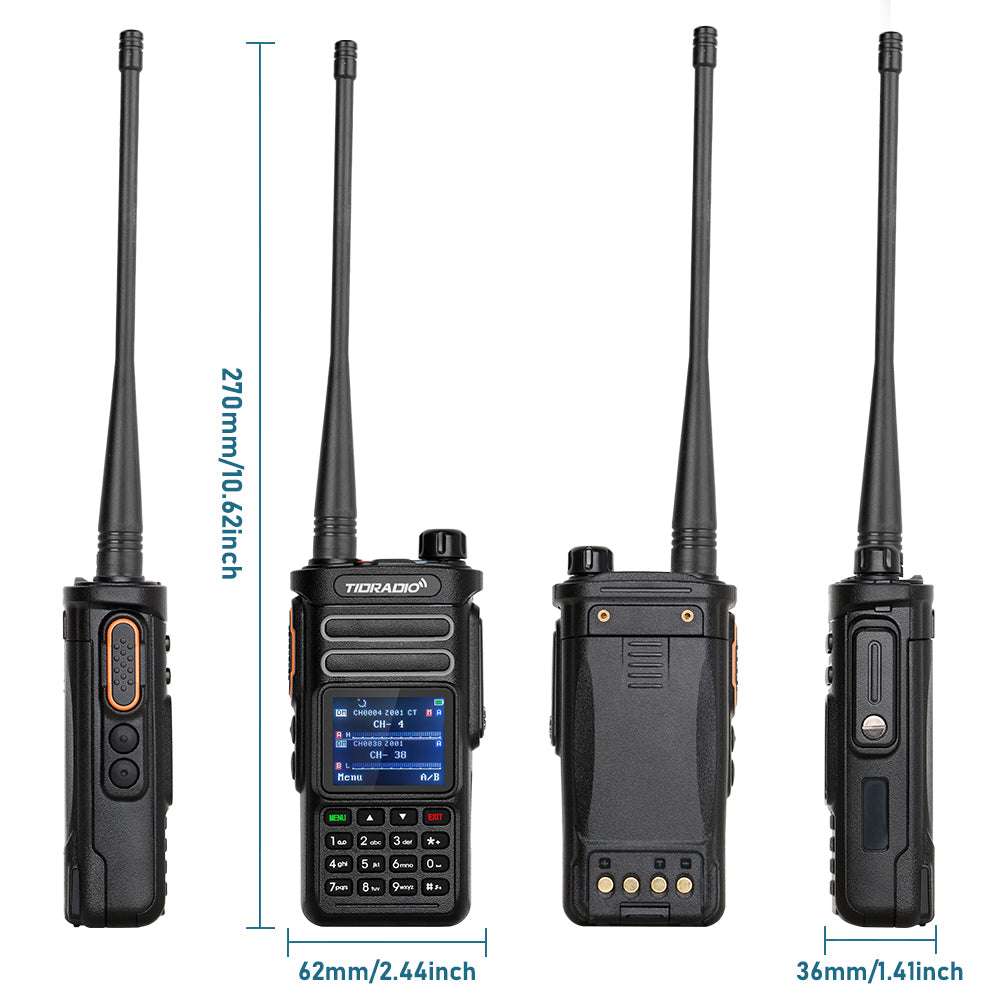

Dimension(HxWxD)(Without Antenna)
|
113x52x32mm
|
|
Weight(With Antenna & Battery)
|
261g
|
|
Transmitter
|
|
|
RF Power Output
|
5.0W/10W option
|
|
Modulation Type（Analog）
|
11KФF3E@12.5KHz\16KФF3E@25KHz
|
|
Modulation(Digital)
|
12.5KHz Data Only: 7K60FXD
|
|
|
12.5KHz Data & Voice:7K60FXE
|
|
Spurious and Harmonics
|
-36dBm<1GHz;-30dBm>1GHz
|
|
SIgnal To Noise Ratio
|
40/45dB
|
|
Audio Distortion
|
≤5%
|
|
Modulation Limiting
|
±2.5KHz@12.5KHz；±5.0KHz@25KHz
|
|
Audio Response
|
+1 to -3dB
|
|
Digital Vocoder Type
|
AMBE++
|
|
Digtal Protocol
|
ETSl-TS102 361-1,-2,-3
|
|
Receiver
|
|
|
Sensitivity(Analog)
|
≤0.3μV（12dB SINAD；0.22μV(12dB SINAD）
|
|
Sensitivity(Digital)
|
≤0.30μV/BER5%
|
|
Selectivity
|
≥60dB/65dB
|
|
Spourious Response Rejection
|
≥60dB
|
|
Intermodulation
|
≥60dB
|
|
S/N
|
40/45dB
|
|
Rated Audio Power Output
|
1.5W
|
|
Rated Audio Distortion
|
≤3%
|
|
Audio Response
|
+1 to 3dB
|
|
Conducted Spurious Emission
|
＜-57dBm
|
